🔗 YOLOv3 and YOLOv3Tiny

The YOLOv3 and YOLOv3Tiny classes implement the models from the paper “YOLOv3: An Incremental Improvement”. YOLOv3 is a simple object detection algorithm that takes in an image and predicts multiple bounding boxes in a single forward pass of the neural network.

NOTE: At the current time, only prediction is supported by the YOLOv3 and YOLOv3Tiny classes. Support for training and fine-tuning is in progress.

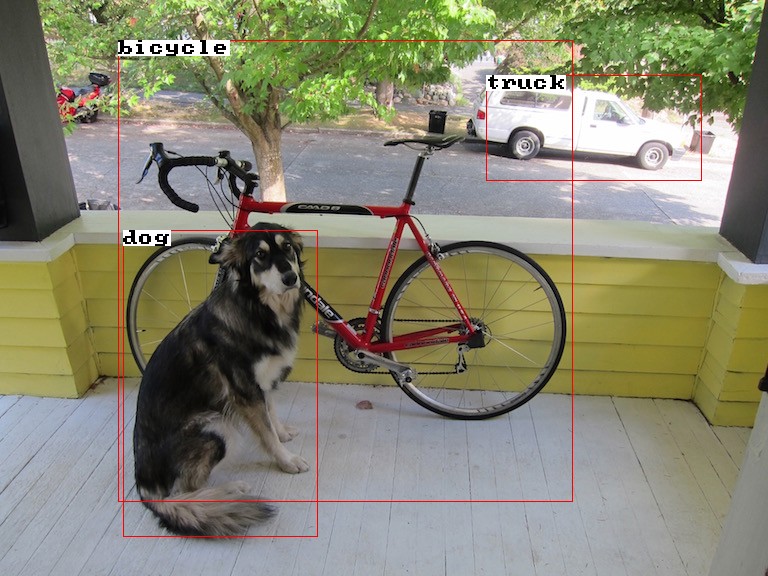

Simple usage example:

NOTE: You must define the MLPACK_ENABLE_ANN_SERIALIZATION macro to load a YOLOv3 model from disk.

// Download: https://models.mlpack.org/yolo/yolov3-320-coco-f64.bin
mlpack::YOLOv3 model;
mlpack::Load("yolov3-320-coco-f64.bin", model);

// Download: https://models.mlpack.org/yolo/dog.jpg
arma::mat inputImage, outputImage;
mlpack::ImageOptions opts;
mlpack::Load("dog.jpg", inputImage, opts);

// Preprocess the `inputImage`, predict bounding boxes using `YOLOv3`
// and draw them onto `outputImage`.
model.Predict(inputImage, opts, outputImage, true);

// Save to "output.jpg".
mlpack::Save("output.jpg", outputImage, opts);

More examples...

Quick Links:

Constructors: create YOLOv3 objects.
Predict(): predict bounding boxes in an image.
Other functionality for loading, saving, and inspecting the model.
YOLOv3Tiny class for efficient low-resource detection.
Pretrained weights for different YOLO models.
Examples of simple usage and links to detailed example projects.
Template parameters for custom behavior.

🔗 Constructors

Construct a YOLOv3 object using one of the constructors below. Defaults and types are detailed in the

model = YOLOv3()
- Create an uninitialized YOLOv3 model.
- After this step, load pretrained weights into the model with Load().

🔗 Predicting Bounding Boxes

Once the weights are loaded, you can compute likely object bounding boxes with with Predict().

model.Predict(image, opts, output, drawBoxes=false, ignoreThresh=0.7)
- Predict objects in the given image (with metadata opts).
- Predict will apply a letterbox transform to image. Image pixel values are expected to be between 0-255.
- If drawBoxes is true, output will be a copy of image with the bounding boxes from the model drawn onto it.
- Bounding boxes will be drawn if their confidence is greater than ignoreThresh.
- If drawBoxes is false, the output will be the raw outputs of the model. The bounding box coordinates will be in the original image’s space.
  - The format of the output matrix is described in the documentation for the next overload, below.

name	type	description	default
`image`	`arma::mat`	Input image.	n/a
`opts`	`ImageOptions`	Image metadata.	n/a
`output`	`arma::mat`	Output: either an output image with bounding boxes or raw outputs of the model, depending on `drawBoxes`.	n/a
`drawBoxes`	`bool`	If `true`, copy `image` to `output` and draw bounding boxes; otherwise, simply return raw bounding boxes and class probabilities in `output`.	`false`
`ignoreThreshold`	`double`	Minimum confidence to have the corresponding bounding box drawn onto `output`, if `drawBoxes` is true.	`0.7`

model.Predict(preprocessedInput, rawOutput)
- Takes in a manually preprocessed image. See example.
- rawOutput stores the raw detection data. The shape of the output matrix will be (numAttributes * numBoxes, preprocessedInput.n_cols).
- Each bounding box is made up of numAttributes elements: cx, cy, w, h, the objectness score, and class probabilities for each class.
  - cx and cy are the coordinates for the center of the bounding box.
  - w and h are respectively the width and height of the bounding box.
  - Objectness represents how likely an object is in the given box (0 to 1).
  - The class probability represents the conditional probability that an object is of a particular class given that there is an object in the box.
- numAttributes can be obtained from model.NumAttributes().
- numBoxes depends on the model size and can be obtained from model.NumBoxes(). See the pretrained weights section for more info.
- So, e.g., output(j * numAttributes + (5 + i), k) obtains the class probability of the ith class in the jth bounding box of the kth image in preprocessedInput. See examples for usage samples.

name	type	description
`input`	`MatType`	Input image. See example for details on preprocessing the input image
`output`	`MatType`	Raw outputs of the model

🔗 Other Functionality

YOLOv3 can be serialized with Save() and Load().
Model() will return the underlying DAGNetwork object that represents the model architecture.
ImageSize() will return a size_t containing the expected width and height of the image after preprocessing. The yolov3-320-coco-f64.bin model for example takes in an image where the width and height are 320 pixels.
NumClasses() will return a size_t indicating the number of classes that a bounding box could contain. For example, the pretrained weights were trained on the COCO dataset, which includes 80 different classes.
ClassNames() will return a vector of strings (std::vector<std::string>), each being the name of a class the model can predict. You can find all the COCO names in order here.
Anchors() returns a vector of doubles (std::vector<double>) representing the anchors used during inference.
NumBoxes() returns a size_t indicating the number of possible bounding boxes the model can detect.

🔗 `YOLOv3Tiny`

YOLOv3Tiny is a smaller object detection model based off of YOLOv3 but for low-resource machines. YOLOv3Tiny has an identical API to YOLOv3 so it can be used as a drop-in replacement. YOLOv3 has ~60 million parameters, while YOLOv3Tiny has ~8 million.

Pretrained weights are also included for YOLOv3Tiny.

Simple example usage of `YOLOv3Tiny`

// Step 1: load the pretrained `YOLOv3Tiny` weights.
// Download: https://models.mlpack.org/yolo/yolov3-tiny-416-coco-f64.bin
mlpack::YOLOv3Tiny model;
mlpack::Load("yolov3-tiny-416-coco-f64.bin", model);

// Step 2: load the image.
// Download: https://models.mlpack.org/yolo/dog.jpg
arma::mat image, outputImage;
mlpack::ImageOptions opts;
mlpack::Load("dog.jpg", image, opts);

// Step 3: Preprocess the input image, detect bounding boxes and
// draw them onto `outputImage`.
model.Predict(image, opts, outputImage, true);

// Step 4: Save to "output.jpg".
mlpack::Save("output.jpg", outputImage, opts, true);

🔗 Pretrained weights

Because training a YOLOv3 model from scratch is time-consuming, a number of pretrained models are available for download.

The pretrained weights were trained on the COCO dataset.

COCO dataset was used to train the pretrained weights included.
COCO class names in their correct order.

The format for the name of each YOLOv3 pretrained model is <model name>-<image size>-<finetuned dataset name>-<matrix type>.bin.

arma::fmat weights (e.g 32-bit precision) are also available. These weights need custom template behaviour.

An increased image size means the model will be able to better detect smaller objects at the cost of speed. Similarly, smaller matrix types allow for faster loading of models and faster inference times.

When using YOLOv3, different image sizes will affect how many possible boxes the model can output. For example, yolov3-320-coco-f64.bin will output 6300 possible boxes. Below is a table with all the pretrained models and how many possible boxes they output.

Model	Image Size	Number of Boxes
`yolov3`	`320`	`6300`
`yolov3`	`416`	`10647`
`yolov3`	`608`	`22743`
`yolov3-tiny`	`416`	`2535`

The pretrained models available were all finetuned on the COCO dataset. A link to all the COCO class names is available too.

🔗 Simple Examples

See also the simple usage example for a trivial usage of the YOLOv3 class.

NOTE: You must define the MLPACK_ENABLE_ANN_SERIALIZATION macro to serialize and deserialize models that use arma::mat as the data type.

Simple example loading the image, passing it to Predict() and saving the output.

// Step 1: load the pretrained weights.
// Download: https://models.mlpack.org/yolo/yolov3-320-coco-f64.bin
mlpack::YOLOv3 model;
mlpack::Load("yolov3-320-coco-f64.bin", model);

// Step 2: load the image.
// Download: https://models.mlpack.org/yolo/dog.jpg
arma::mat inputImage, rawOutput;
mlpack::ImageOptions opts;
mlpack::Load("dog.jpg", inputImage, opts);

// Step 3: Preprocess the `inputImage`, predict bounding boxes using `YOLOv3`.
// Set `drawBoxes` to false in order to store raw outputs in `rawOutput`.
model.Predict(inputImage, opts, rawOutput, false);

// Step 4: Inspect the first possible bounding box.
std::cout << "First bounding box: [" << (size_t) rawOutput(0, 0) << ", "
    << (size_t) rawOutput(1, 0) << ", " << (size_t) rawOutput(2, 0) << ", "
    << (size_t) rawOutput(3, 0) << "]." << std::endl;

Example of doing manual preprocessing on the input image, and getting raw output of the model.

// Step 1: load the pretrained model.
// Download: https://models.mlpack.org/yolo/yolov3-320-coco-f64.bin
mlpack::YOLOv3 model;
mlpack::Load("yolov3-320-coco-f64.bin", model);

// Step 2: load the image.
// Download: https://models.mlpack.org/yolo/dog.jpg
arma::mat inputImage, preprocessedImage, rawOutput;
mlpack::ImageOptions opts;
mlpack::Load("dog.jpg", inputImage, opts);

// Step 3: preprocess the image.
// Normalize pixel values to be between 0-1.
preprocessedImage = inputImage / 255.0;

// Change the dimensions of the image to the model's input dimensions while
// keeping the aspect ratio of the original image using `LetterboxImages`.
mlpack::ImageOptions preprocessedOpts = opts;
const size_t imgSize = model.ImageSize();
const double greyValue = 0.5;
LetterboxImages(preprocessedImage, preprocessedOpts, imgSize, imgSize, greyValue);

// Change the layout of the channels such that they're grouped.
preprocessedImage = GroupChannels(preprocessedImage, preprocessedOpts);

// Step 4: detect objects in the image.
// Get raw output from model and store in `rawOutput`.
model.Predict(preprocessedImage, rawOutput);

// Step 5: Inspect the first possible bounding box.
std::cout << "First bounding box: [" << (size_t) rawOutput(0, 0) << ", "
    << (size_t) rawOutput(1, 0) << ", " << (size_t) rawOutput(2, 0) << ", "
    << (size_t) rawOutput(3, 0) << "]." << std::endl;

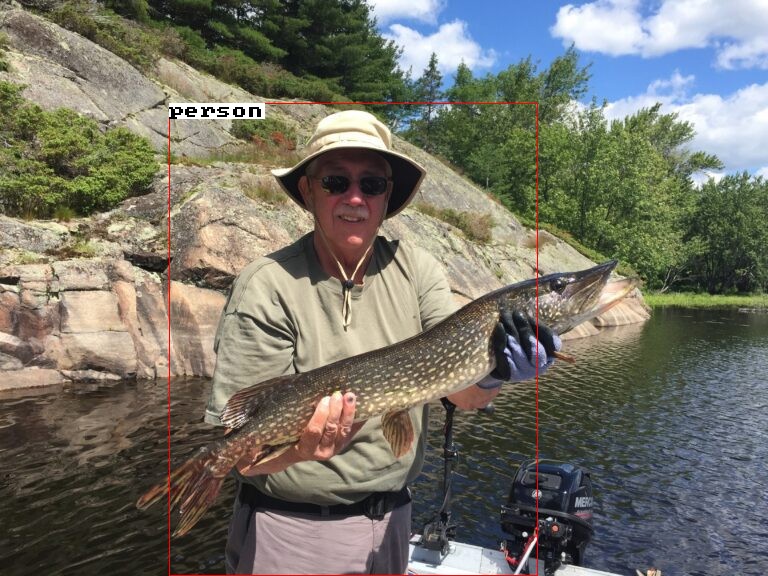

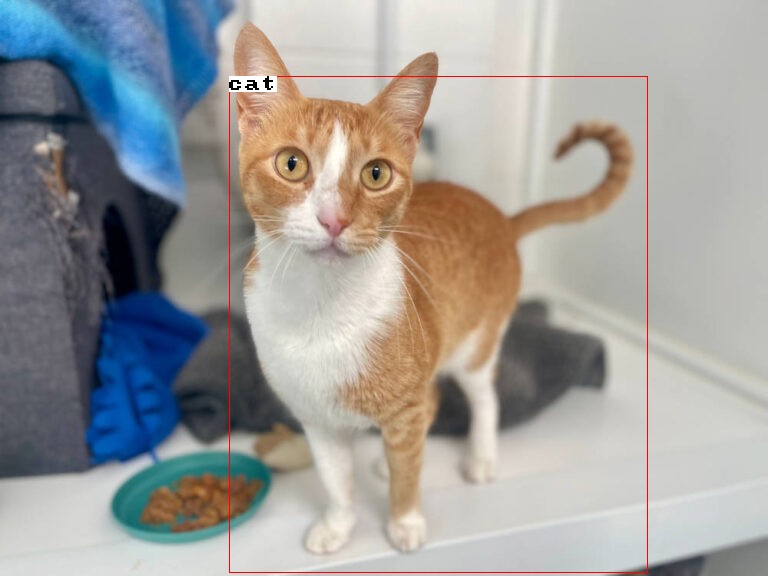

Example of predicting and drawing with multiple images simultaneously. NOTE: in this example, each image must have the same dimensions.

// Step 1: load the pretrained model.
// Download: https://models.mlpack.org/yolo/yolov3-320-coco-f64.bin
mlpack::YOLOv3 model;
mlpack::Load("yolov3-320-coco-f64.bin", model);

// Step 2: load the images.
// Download: https://models.mlpack.org/yolo/dog.jpg
// Download: https://models.mlpack.org/yolo/cat.jpg
// Download: https://models.mlpack.org/yolo/fish.jpg
arma::mat inputImages, outputImages;
mlpack::ImageOptions opts;

std::vector<std::string> inputFiles = {"dog.jpg", "cat.jpg", "fish.jpg"};
mlpack::Load(inputFiles, inputImages, opts);

// Step 3: Preprocess each `inputImages`, detect bounding boxes and
// draw them onto each `outputImages`.
// Each column is a seperate image.
model.Predict(inputImages, opts, outputImages, true);

// Step 4: Save each image.
std::vector<std::string> outputFiles = {"1.jpg", "2.jpg", "3.jpg"};
mlpack::Save(outputFiles, outputImages, opts);

🔗 Advanced Functionality: Template Parameters

The YOLOv3 and YOLOv3Tiny classes also support using different element types to represent weights and predictions. The full signature of YOLOv3 is

YOLOv3<MatType>

MatType: specifies the type of matrix used for learning and internal representation of weights and biases. The default is arma::mat.
Any matrix type that implements the Armadillo API can be used.

The example below uses YOLOv3 using the arma::fmat weights.

NOTE: You must define the MLPACK_ENABLE_ANN_SERIALIZATION_FMAT macro to serialize and deserialize models that use arma::fmat as the data type.

// Step 1: load the pretrained arma::fmat weights.
// Download: https://models.mlpack.org/yolo/yolov3-320-coco-f32.bin
mlpack::YOLOv3<arma::fmat> model;
mlpack::Load("yolov3-320-coco-f32.bin", model);

// Step 2: load the image into an arma::fmat.
// Download: https://models.mlpack.org/yolo/dog.jpg
// Note: the image type must also be `arma::fmat`
arma::fmat image, outputImage;
mlpack::ImageOptions opts;
mlpack::Load("dog.jpg", image, opts);

// Step 3: Preprocess the input image, detect bounding boxes and
// draw them onto `outputImage`.
model.Predict(image, opts, outputImage, true);

// Step 4: Save to "output.jpg".
mlpack::Save("output.jpg", outputImage, opts, true);

Since YOLOv3Tiny has an identical API, we can use the arma::fmat weights for faster inference times.

// Download: https://models.mlpack.org/yolo/yolov3-tiny-416-coco-f32.bin
mlpack::YOLOv3Tiny<arma::fmat> model;
mlpack::Load("yolov3-tiny-416-coco-f32.bin", model);
